Part 2: Building Your First Agent

Bobchestrate - Build Your First Agent

Duration: 20 minutes

Objective: Create a simple agent and understand the basics of agent configuration

What You'll Learn

  • How to create an agent using YAML specification
  • Understanding agent instructions and behavior
  • Testing your agent with the chat interface
  • Using Bob to help debug and improve your agent

Agent Basics

A watsonx Orchestrate agent is an AI assistant that can:

  • Understand natural language
  • Execute tasks using tools
  • Collaborate with other agents
  • Access knowledge bases
  • Follow specific instructions

Step 1: Understanding Agent Structure

An agent specification is defined using YAML or JSON format. Here's what you need to know:

Mandatory Fields

Every agent MUST have these four fields:

  • spec_version (string): The specification version (e.g., "v1")
  • kind (string): The agent type - "native", "external", or "assistant" (default: "native")
  • name (string): Unique identifier for your agent
  • llm (string): The large language model that powers the agent (e.g., "watsonx/ibm/granite-3-8b-instruct" or "groq/openai/gpt-oss-120b")

Core Optional Fields

These fields define your agent's behavior and capabilities:

  • description (string): Human-readable summary of the agent's purpose. This is visible in the UI and helps other agents understand its role when used as a collaborator
  • instructions (string): Natural language guidance that shapes the agent's behavior, persona, and how it uses tools and collaborators
  • style (string): Prompting structure - "default", "react", or "planner" (default: "default")
  • hide_reasoning (boolean): Whether to hide the agent's reasoning from users (default: false)

Extending Agent Capabilities

  • tools (list): Names of tools the agent can use to perform actions (OpenAPI definitions, Python functions, agentic workflows, or MCP server tools)
  • collaborators (list): Names of other agents this agent can delegate tasks to for solving complex problems
  • knowledge_base (list): Names of knowledge bases providing domain-specific information from uploaded files or vector data stores

Advanced Configuration

  • guidelines (list): Rule-based behavior controls with:
  • condition (string, required): When to trigger the guideline
  • action (string, optional): What action to perform

  • tool (string, optional): Which tool to invoke

  • restrictions (string): Whether the agent is "editable" or "non_editable" after import (default: "editable")

  • icon (string): SVG icon string for the agent (64-100px square, max 200KB)

    • Web Chat Features

    • welcome_content (object): Configure the initial greeting
    • welcome_message (string): The welcome message shown to users

    • description (string): Subtitle text below the welcome message

    • starter_prompts (object): Predefined prompts to help users start conversations

    • prompts (list): Up to 3 prompt tiles with title, subtitle, and prompt text

    • chat_with_docs (object): Enable users to upload documents during chat

    • enabled (boolean): Activate document upload feature
    • citations: Configure how citations are displayed
    • generation: Fine-tune document handling behavior

    Context Variables

    • context_access_enabled (boolean): Enable access to context variables from upstream systems (default: false)
    • context_variables (list): List of context variables the agent can access (e.g., wxo_email_id, wxo_user_name, wxo_tenant_id)

    Example: Complete Agent Configuration

    Here's a comprehensive example showing all mandatory and optional fields:

    # complete-agent-example.yaml
# This example demonstrates all available agent configuration options

# === MANDATORY FIELDS ===
spec_version: v1
kind: native
name: complete-example-agent
llm: watsonx/ibm/granite-3-8b-instruct

# === CORE OPTIONAL FIELDS ===
description: A comprehensive example agent demonstrating all configuration options available in watsonx Orchestrate
instructions: |
  You are a demonstration agent showcasing the full range of configuration options.

  Your role is to:
  1. Demonstrate proper agent structure and configuration
  2. Show how different fields affect agent behavior
  3. Serve as a reference for building production agents

  Always be helpful, clear, and educational in your responses.

style: default
hide_reasoning: false

# === EXTENDING AGENT CAPABILITIES ===
tools:
  - example-tool-1
  - example-tool-2

collaborators:
  - helper-agent
  - specialist-agent

knowledge_base:
  - company-docs
  - product-catalog

# === ADVANCED CONFIGURATION ===
guidelines:
  - condition: "user asks about pricing"
    action: "provide pricing information from knowledge base"
    tool: "pricing-lookup-tool"
  - condition: "user needs technical support"
    action: "delegate to technical support agent"

restrictions: editable

icon: |
  <svg width="64" height="64" viewBox="0 0 64 64" xmlns="http://www.w3.org/2000/svg">
    <circle cx="32" cy="32" r="30" fill="#0f62fe"/>
    <text x="32" y="40" font-size="24" fill="white" text-anchor="middle">AI</text>
  </svg>

# === WEB CHAT FEATURES ===
welcome_content:
  welcome_message: "Welcome! I'm your complete example agent."
  description: "I demonstrate all available configuration options for watsonx Orchestrate agents."

starter_prompts:
  prompts:
    - title: "Learn About Configuration"
      subtitle: "Understand agent setup"
      prompt: "Tell me about agent configuration options"
    - title: "See My Capabilities"
      subtitle: "What can I do?"
      prompt: "What are your capabilities and features?"
    - title: "Get Started"
      subtitle: "Begin exploring"
      prompt: "How can you help me today?"

chat_with_docs:
  enabled: true
  citations:
    enabled: true
    display_format: inline
  generation:
    max_tokens: 2000
    temperature: 0.7

# === CONTEXT VARIABLES ===
context_access_enabled: true
context_variables:
  - wxo_email_id
  - wxo_user_name
  - wxo_tenant_id
  - wxo_user_role

    Key Insight

    The instructions field is the most critical part of your agent configuration. It defines the agent's personality, capabilities, and behavior patterns. Well-written instructions lead to predictable, helpful agent responses.

    Step 2: Create Your First Agent

    Let's create a simple "Hello World" agent. Make sure you have the WXO Agent Architect mode selected for the Bob chat. Start New Task in the Bob chat.

    Ask Bob to Help:

    Bob, create a YAML file called hello-agent.yaml that defines a simple watsonx Orchestrate agent that greets users and tells them about itself.

    Or create the yaml-file manually (see hello-agent-EXAMPLE.yaml for reference):

    # hello-agent.yaml
spec_version: v1
kind: native
name: hello-world-agent
llm: groq/openai/gpt-oss-120b
description: A friendly agent that greets users and introduces itself
instructions: |
  You are a friendly AI assistant named HelloBot. Your role is to:

  1. Greet users warmly when they first interact with you
  2. Introduce yourself and explain what you can do
  3. Answer questions about watsonx Orchestrate
  4. Be helpful, concise, and friendly

  When greeting users, mention that you're a demo agent created in a workshop.
  Keep your responses brief and engaging.

    🚨 IMPORTANT! 🚨

    Since we have not yet provided Bob with any specific wxO agent development rules (we'll do that in next part 2b) - just the MCP servers to look the current documentation - Bob can make mistakes in the YAML file. One of the things is the name of the agent in the yaml file. WxO does not support dashes in the name of the agent. So if you see a dash in the name, please remove it and replace it with an underscore - e.g. hello-agent becomes hello_agent.

    Step 3: Import Your Agent

    IMPORTANT!

    Since the workshop participants are working in the same environment, you need to import the agent with a unique name. Please use your initials in the agent name. Edit the agent name in the YAML file before importing by adding your initials to the agent name. For example, change hello_agent to hello_agent_JKJ.

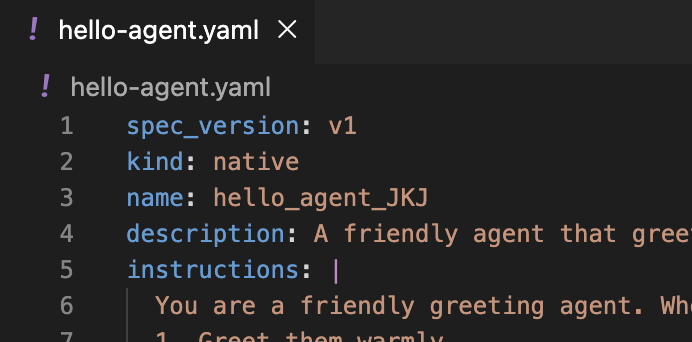

    Agent renaming

    Option A: Using Bob

    Bob, help me import the hello-agent.yaml file into my active environment. Use the available Python virtual environment (.venv).

    NOTE: IBM Bob is using its own terminal to run the commands and therefore it might take a while to undestand that it needs to use the existing Python virtual environment (.venv). Therefore it's a good idea to add that info to the prompt. You can also test without it and approve Bob to have access to all the necessary files and the wxO MCP servers. Bob should eventually figure things out by itself and import the agent correctly.

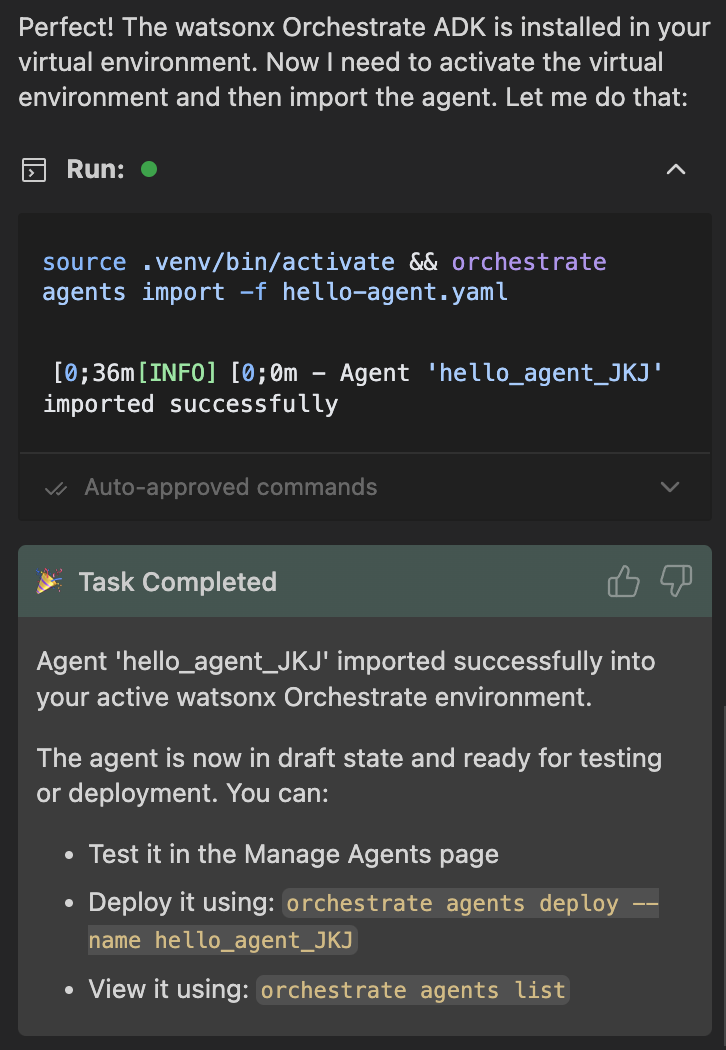

    Bob importing the agent

    Option B: Manually using the watsonx Orchestrate CLI - running orchestrate command in the terminal

    orchestrate agents import -f hello-agent.yaml

    You should see:

    [INFO] - Agent '<your_agent_name>' imported successfully

    Step 4: Test Your Agent

    orchestrate chat ask --agent-name <your_agent_name>

    This will start an interactive chat session with your agent. This is very useful for testing your agent's responses without needing to login to your watsonx Orchestrate instance UI.

    Try these test messages:

    • "Hello!"
    • "What can you do?"
    • "Tell me about watsonx Orchestrate"

    Type exit or press Ctrl+C to quit.

    Step 5: Understanding Agent Instructions

    The instructions field is crucial - it defines your agent's behavior.

    Good Instructions Include:

    ✅ Role definition: "You are a customer support agent..."
    ✅ Capabilities: "You can check orders, process refunds..."
    ✅ Behavior guidelines: "Be professional and empathetic..."
    ✅ Output format: "Provide answers in bullet points..."
    ✅ Limitations: "If you can't help, escalate to..."

    Example: Improving Instructions

    Ask Bob: (make sure to have the WXO Agent Architect mode selected)

    Bob, improve the instructions in hello-agent.yaml to make the agent more helpful and specific about what it can do in this workshop context

    Bob might suggest something like:

    instructions: |
  You are the Hello Agent, a demonstration agent designed for watsonx Orchestrate workshops.

  Your primary purpose is to help workshop participants understand the basics of agent creation and interaction.

  When users interact with you:
  1. Greet them warmly and introduce yourself as the Hello Agent
  2. Explain that you're a simple demonstration agent built to showcase watsonx Orchestrate capabilities
  3. Describe your specific capabilities:
     - Providing friendly greetings and introductions
     - Explaining what watsonx Orchestrate agents are and how they work
     - Demonstrating basic conversational AI patterns
     - Serving as a starting point for learning agent development
  4. Offer to answer questions about:
     - How agents are structured (spec_version, kind, name, description, instructions, etc.)
     - The role of LLMs in agent behavior
     - How agents can be extended with tools and collaborators
     - Next steps in the workshop for building more complex agents

  Workshop Context:
  - You are part of a hands-on learning experience
  - Participants are learning to create and deploy watsonx Orchestrate agents
  - Your simplicity is intentional - you demonstrate core concepts without complexity
  - You can help participants understand the YAML structure that defines you

  Always be polite, enthusiastic, educational, and encouraging. Help participants feel confident about building their own agents.

    Let Bob save the updated instructions to your hello-agent.yaml file.

    Step 6: Update Your Agent

    After modifying the YAML file, re-import it:

    orchestrate agents import -f hello-agent.yaml

    The agent will be updated with your new instructions. Test it again to see the difference!

    Common Issues and Solutions

    Issue: "Agent not found"

    Solution: Check the agent name is correct:

    orchestrate agents list

    Issue: Agent gives unexpected responses

    Solution: Review and refine your instructions. Ask Bob:

    Bob, why might my agent be giving unexpected responses? Here are the instructions: [paste instructions]

    Issue: Import fails with validation error

    Solution: Check your YAML syntax:

    Bob, check this YAML file for syntax errors: [paste YAML]

    Additional Exercises

    For hands-on practice building agents, see the Part 2 Exercises.

    The exercises cover:

    • Creating personality-based agents
    • Building domain expert agents
    • Multi-lingual agent support
    • Structured output formatting
    • Conversational flow patterns
    • Debugging agent issues

    Key Takeaways

    ✅ Agents are defined using YAML specifications
    ✅ Instructions are the most important part of agent configuration
    ✅ Agents can be tested via CLI or Python
    ✅ Bob can help you create, debug, and improve agents
    ✅ Agents can be updated by re-importing the YAML file

    Next Steps

    Now that you understand basic agents, learn how to configure Bob IDE with custom rules for more efficient development!

    Continue to Part 2b: Using Custom Rules with Bob IDE →

    Additional Resources

    💡 Pro Tip: Use Bob to iterate on your agent instructions. Ask Bob to review and improve them based on your specific use case!

    🧠 Knowledge Check

    Now that you've built your first agent, test what you've learned!

    Part 2 Quiz

    Take the short 5-question quiz to check your understanding of agent configuration and the watsonx Orchestrate CLI. Your score is saved automatically and shown on the home page dashboard.

    Take the Part 2 Quiz →
